Leg Drill

Leg Drill, Pneumatic Rock Drill, Jackhammer, Jack Hammer, Air Leg Drill, Hand-held Drill, Pick Hammer, Rotary Hammer, Palm Hammer, 322D-LD, AA-1, CA-7, TY16-HD, TY24-LD, TY280-LD, TY85-LD















Specifications

Model	Unit	322D-LD	TY24-LD	TY85-LD	TY280-LD
Overall length	mm	705	660	615	615
Weight of drill	kg	26.9	26	27	27
Number of blows	bpm	1850	1800	2300	2300
Air consumption	m3/min at 5 bar	3.2/2.8	2.7	3.5	3.5
Shank size	mm	H22/25 X 108	H22 X 108	H22 X 108	H22 X 108
Cylinder diameter	mm	70	66.7	85	85
Piston stroke	m/m	68	68	60	60
Type of blow		Air / Wet	Air / Wet	Air / Wet	Air / Wet
Support Leg		LB56-SL	XSL30-SL	XSL50-SL	XSL40-SL

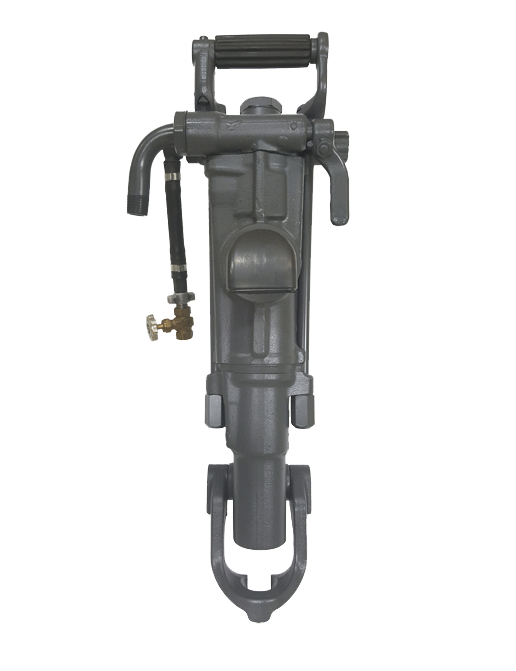

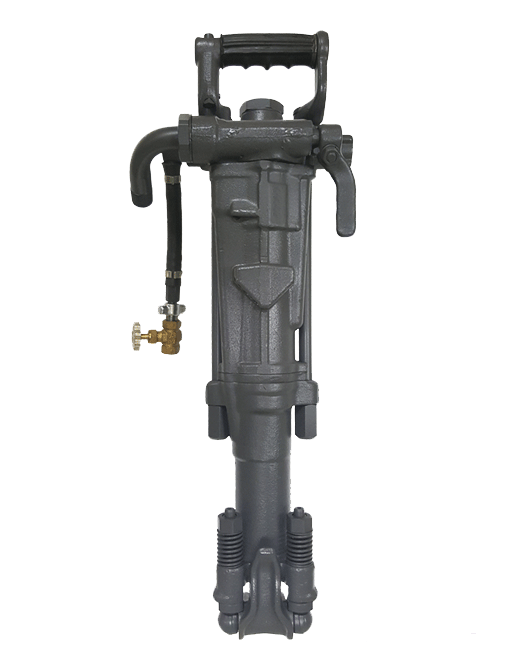

322D-LD                                             TY24-LD                                             TY280-LD

Support Leg

Model	Unit	LB56-SL	XSL30-SL	XSL50-SL	XSL40-SL
Overall length	mm	1388	1395	1530	1750
Extension length	mm	990	965	1000	1210
Maximum length	mm	2378	2360	2530	2960
Weight of support leg	kg	13	12	13	15.2
Feed Cylinder Diameter	mm	56	57	65	62
