Rock Drill Assy

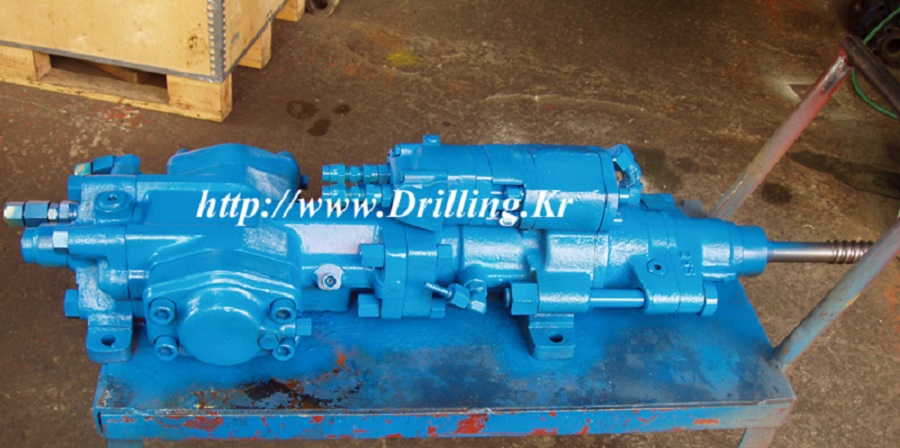

HD609 Reconditioned Rock Drill Assy

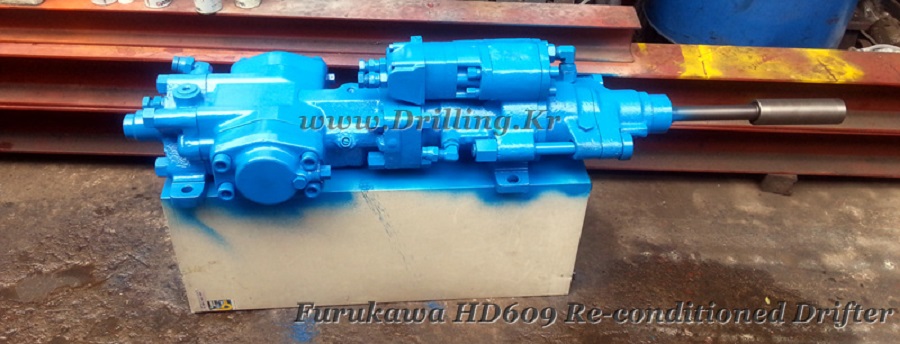

HD609 Reconditioned Rock Drill Assy

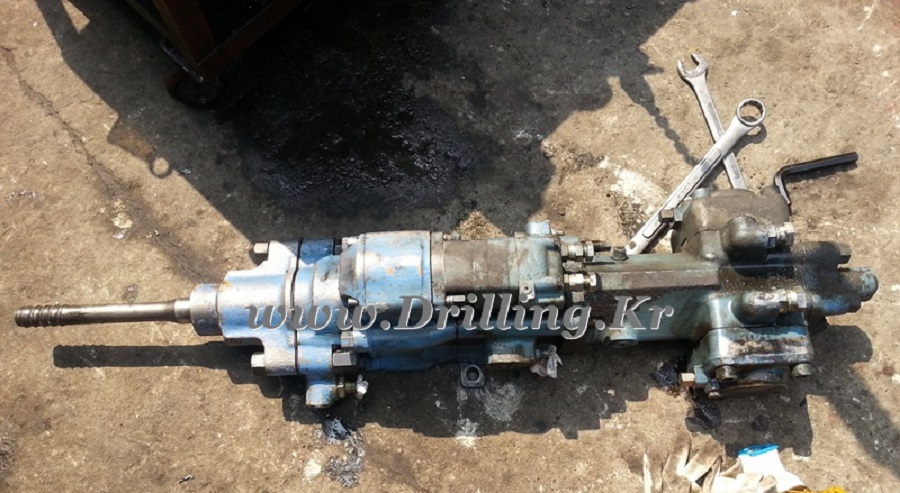

HD709 Used Rock Drill Assy

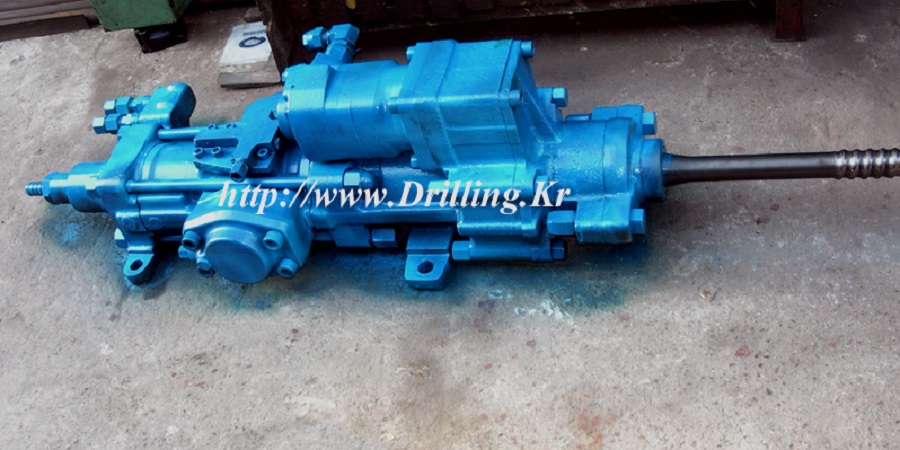

HD500 Reconditioned Rock Drill Assy

HD609-91004 CYLINDER ASSY
HD609-01017 CYLINDER
HD609-01019 BUSH (F)
HD609-01102 PISTON(B)
HD609-01310 VALVE
HD609-01311 VALVE PLUG
HD609-01313 BUSH (R)
HD609-92003 FRONT HEAD ASSY
HD609-02018 FRONT HEAD
HD609-02002 THRUST BUSH
HD609-02003 PLAIN BEARING(B)
HD609-02019 PLAIN BEARING(B)
HD609-02005 CHUCK DRIVER
HD609-02006 CHUCK DRIVER BUSH
HD609-02012 CHUCK (E)
HD609-02008 DRIVE GEAR

HD709-01012 BUSH(F)
HD709-01043 RETAINER, SEAL(R)
HD709-01010 VALVE
HD709-02008 BEARING, PLAIN(RA)
HD709-02025 BUSH, CHUCK DRIVER
HD709-02005 BUSH, CHUCK DRIVER
HD709-02006 CHUCK HD709-02009
HD709-02104 BEARING, PLAIN(F)
HD709-02202 BUSH, FRONT
HD709-02204 BUSH, FRONT 4773-
HD709-02203 BODY, SWIVEL
HD709-99116 SEAL KIT, DRIFTER
HD709-99104 SEAL KIT, DRIFTER
HD709-99184 REVERSE SEAL KIT (Q.E.D)
HD709-99182 SEAL KIT, Q.E.D

972000-08002 DRIVE MOTOR
972000-08001 DRIVE MOTOR
023001-02006 DRIVE SPROCKET
922001-04004 FRONT IDLER(LH)
920001-04003 FRONT IDLER(RH)
920001-04003 FRONT IDLER
922001-05033 BOTTOM(TRACK) ROLLER
923001-07002 TOP(CARRIER) ROLLER
972000-15001 DRIVE MOTOR
040002-02009 DRIVE SPROCKET
924101-04003 FRONT IDLER
924101-05016 TRACK ROLLER
923001-07002 TOP(CARRIER) ROLLER
040001-01032 TRACK GUARD
040001-01033 TRACK GUARD
