HL/RD Series Rock Drill Parts
* P : Pneumatic, H : Hydraulic
| Model | Drifter | Remarks |
| Jumbo | L600 / L700 | P |
| Jumbo | HL300 / RD314 / RD414 | H |
| CHA500 | HL500 / HL500S | H |
| CHA500 | HL550 / HL560 / HL510 | H |
| CHA500 | HL510 | H |
| CHA600/660 | HL600 / 600TM | H |
| DX700 | HL700 / HL710 / HL710S | H |
| CHA1100C / DP1100 |
HL1000 / HL1000S | H |
| CHA1000 | HL600 / 600TM | H |
| HS205D | HL538 | H |
| JUMBO | HLX5 / HLX5T | H |
| JUMBO-RD-520 | X2 | H |
| JUMBO-RD-525 | HL438 | H |
| CHA-1100/DP-1100 | HL1000 / HL1000S | H |
| DP-1100 | HL1010 | H |
| DX-800 | HL800 / HL800T | H |
| DX-800 | HL850S | H |
| DP-1500i | HL1500 | H |
| DP1600i | HL1560 / HL1560T | H |

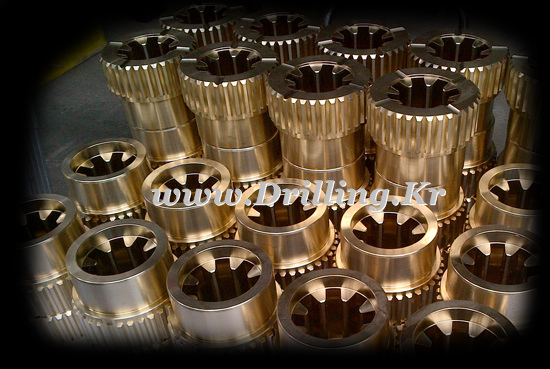

 Coupling Driver |
|
 |
 |
 |
 |
OMT-154 127 24 HYDRAULIC MOTOR
OMT-154 044 38 HYDRAULIC MOTOR
OMT-550 752 55 HYDRAULIC MOTOR
550 596 17 PISTON OMT-154 044 38 HYDRAULIC MOTOR
OMT-550 752 55 HYDRAULIC MOTOR

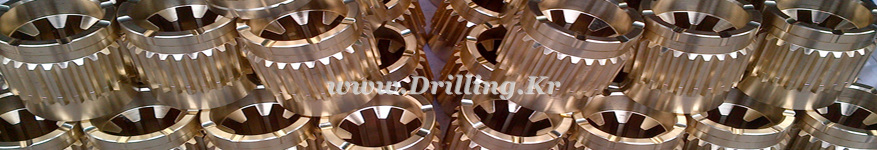

550 602 51 DRIVER (BRONZE)
550 786 46 DISTRIBUTOR
BG00800260 SERVICE KIT
551 530 28 DRIVER
BG00570267 SEAL KIT
550 117 63 ACCUMULATOR
550 036 25 ACCUMULATOR
550 036 27 ACCUMULATOR
153 533 28 PISTON
818 565 09 SEAL KIT FOR ROCK DRILL
085 256 38 CHUCK
095 341 48 ROTATION BUSHING ASSY
090 120 08 CONNECTING PIECE
041 148 08 DIAPHRAGM
153 534 58 FRONT CYLINDER
153 535 88 DISTRIBUTOR
153 536 08 REAR CYLINDER
153 539 98 HYDRAULIC MOTOR ASSY
810 189 59 DOUBLE WHEEL
811 037 39 BEARING
815 097 29 BEARING BUSH
800 559 09 BOLT
818 565 09 SEAL KIT
151 545 78 BEARING
151 578 88 BEARING
150 038 08 THRUST BEARING
150 343 58 BEARING
151 740 98 BUSHING
153 534 58 FRONT CYLINDER
153 535 88 DISTRIBUTOR
153 536 08 REAR CYLINDER
154 902 98 BODY CYLINDER
150 359 28 BEARING BUSHING
857 589 39 BEARING
150 053 88 BEARING BUSHING
151 531 58 FLANGE
151 943 28 ROTATION AXLE
151 906 78 BEARING BUSHING
151 931 68 SEAL HOUSING
151 939 88 GEAR HOUSING ASSY
152 341 11 FLUSHING DEVICE ASSY
152 331 08 ROTATION BUSHING ASSY
151 756 68 COUPLING
152 639 08 TIE ROD
879 484 49 SEAL KIT FOR ROCK DRILL
154 221 98 SPACER ASSY
150 259 08 BEARING HOUSING ASSY
150 349 18 BEARING HOUSING ASSY
150 229 78 BUSHING
151 781 58 SHAFT
858 438 49 SEAL
153 913 18 ACCUMULATOR ASSY LP
153 875 08 ACCUMULATOR ASSY HP
153 669 48 PISTON
153 668 18 FRONT CYLINDER ASSY
152 460 38 SHAFT ASSY
869 790 09 HYDRAULIC MOTOR OMSU 125
154 764 48 BODY
152 162 08 COVER (T45)
152 473 28 SEAL HOUSING
152 164 68 SHANK BUSHING
152 176 28 BUSHING (T45)
150 514 08 BUSHING BEARING
151 818 08 SEAL
872 189 39 SEAL
152 055 58 DIAPHRAGM
807 590 69 VALVE
235 032 38 SPROCKET WHEEL ASSY
164 580 28 DRIVE SHAFT
232 201 08 BUSHING
232 202 38 SHAFT
164 579 68 GEAR
867 343 09 ROLLER BEARING
868 679 99 SHAFT SEAL
867 342 89 ROLLER BEARING
164 578 38 SPROCKET WHEEL GEAR
