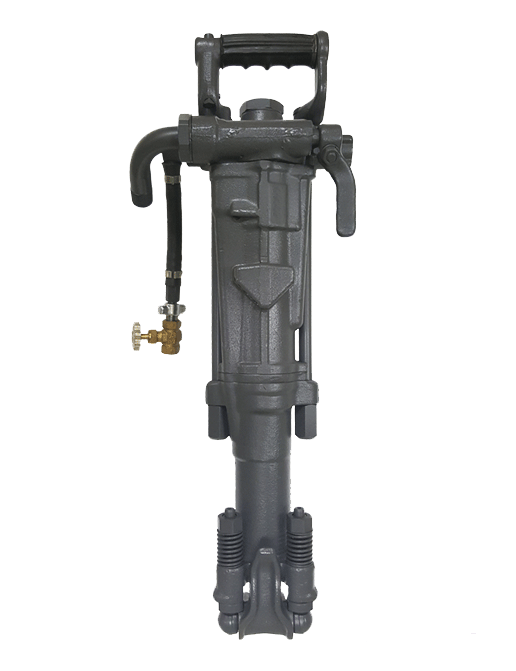

TY24-LD Leg Drill and Support Leg
Specifications
Model |
Unit | TY4-LD |
| Overall length |
mm | 660 |
| Weight of drill |
kg | 26 |
| Number of blows |
bpm | 1800 |
| Air consumption |
m3/min at 5 bar |
2.7 |
| Shank size |
mm | H22 X 108 |
| Cylinder diameter |
mm | 66.7 |
| Piston stroke |
m/m | 68 |
| Type of blow | Air / Wet | |
| Support Leg | XSL30-SL | |
Support Leg
Model |
Unit | XSL30-SL |
| Overall length |
mm | 1395 |
| Extension length |
mm | 965 |
| Feed length(max) |
mm | 2360 |
| Weight of support leg |
kg | 12 |
| Feed Cylinder diameter |
mm | 56 |
