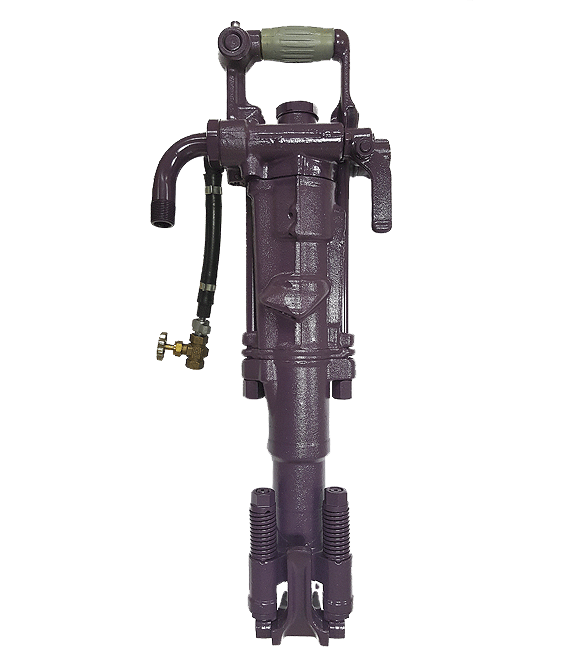

322D-LD Leg Drill and Support Leg (Pneumatic)
Specifications
Model |
Unit | 322D-LD |
| Overall length |
mm | 705 |
| Weight of drill |
kg | 26.9 |
| Number of blows |
bpm | 1850 |
| Air consumption |
m3/min at 5 bar |
3.2 / 2.8 |
| Shank size |
mm | H22/25 X 108 |
| Cylinder diameter |
mm | 70 |
| Piston stroke |
m/m | 68 |
| Type of blow | Air / Wet | |
| Support Leg | LB56-SL / LB65-SL | |
Support Leg
Model |
Unit | LB56-SL | LB65-SL |
| Overall length |
mm | 1388 | 1530 |
| Extension length |
mm | 990 | 1000 |
| Maximum length |
mm | 2378 | 2530 |
| Weight of support leg |
kg | 13 | 13.5 |
