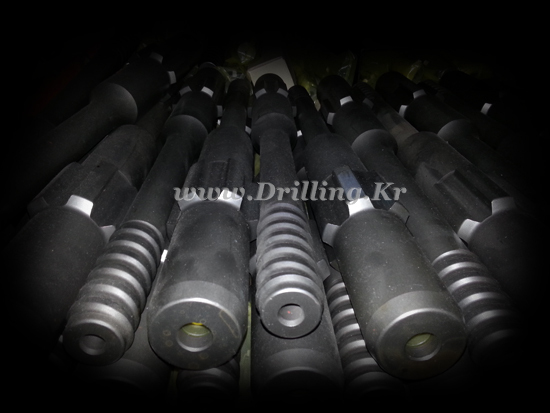

SHANK ADAPTER

Please do not hesitate to contact Drilling.Kr if you couldn't find the shank adapters that you are looking for.


No	Drifter	No	Drifter	No	Drifter
Ingersoll Rand		A. C.		Gardner Denver
001	YH50 YH55	031		067	RP66
002	YH50RP / YH55RPI	032		068	HPR1H
003	YH60	033		069	HPR2H
004	YH65RP / YH70RP / YH80RP	034		070	PR133
005	YH80A	035		Soosan
006	YH95RP / YH100RP	036		071	SP3 (HD500)
007	YH100V / YH135V	037		Tamrock
008	YD90M / YD100M	038		072	HL300
Joy		039		073	HL300S
009	VCR361	040		074	HL500 / HL500S
010	VCR260 / VCR360	041		075	HL500-45 / 510-45
Mitsu		042		076	HL500S-38 / 510B / 510H
011	RPH400 / RPH600 / DCH400 / DCH600	043		077	HL550SUPER
012	RPH200 / HYDRASTAR200 / HYDRASTAR300	Le RoI		078	HL550S / HL560S
Mitsubishi		044	155 / 455R / LHD155	079	HL600
013	MCD6G	Bohler		080	HL600S
Sig		045	HM753	081	HL600S-45
014	HBM100	046	HS448	082	HL645 / HL645S
015	HBM150	047	HS464	083	HL700-45
Secoma		Dns		084	HL700-52
016	HYDRASTAR200	048	DNT3 (ED100, HD500)	085	HL850
Montabert		Furukawa		086	HL1000 / HL1000S
017	HC40	049	HD75	087	HL1000
018	HC80	050	HD90	088	HL1500
019	HC120	051	HD180	089	HL1500-60
020	HC80RP	052	HD260	090	HLX5
021	HC120R	053	HD300	Tokyo Riuki
022	HC120 / HC150	054	HD609 (JET-7, JET7, SP3G)	091	HD260
023	HC80R / HC120R / HC150R	055	HD609RP	092	YD90MT
024	HC80R / HC120R / HC150R	056	HD612 (SP6)	Toyo
025	H200R	057	HD612RP	093	TH500 / TH501 / TH501S / TH550
Komatsu		058	HD612QED	094	TH800 / TH900
026	KDH10 (4 Spline)	059	HD615	095	TH900(L)
027	KDH10 (8 Spline)	060	HD709 (JET-8, JET8)	096
Klemm		061	HD709RP	097
028	4026 / 2053	062	HD712	098
Demag		063	HD712RP	099
029	RD400	064	HD715	100
030	RD500	065	HD715RP
		066	PD200 / M120

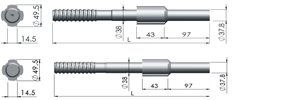

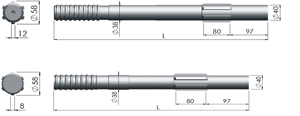

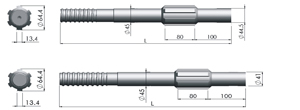

No	Shank Adapters	Thread	Flushing Tube Dia (mm)	Length (mm)	Approx' Weight
No	Shank Adapters	Thread	Flushing Tube Dia (mm)	Length (mm)	kg	lb
001		R38	16	440	3.7	8.16
		T38	16	440	3.7	8.16
		T38	16	450	3.8	8.38

		R38		517	5.1	11.24
		T38		517	5.1	11.24

002		T38	16	540	4.3	9.48


003		R38	14	447	5.1	11.24
		T38	14	537	5.5	12.13
		T45	14	550	6.2	13.67
004		T38	19	700	7.6	16.76
		T45	19	700	7.9	17.42

005		T45	19	495	6.1	13.45
		T51	19	495	6.4	14.11

006		T45	19	840	10.5	23.15
		T51	16	840	10.9	24.03

007		T45		728	11.4	25.13
		T51		728	11.7	25.80

008		R32	11	330	2.4	5.29
		T38	11	330	2.6	5.73

		R32		480	3.4	7.50
		R38		480	3.7	8.16

009		T38	19	440	5.0	11.02
		T45	19	440	5.0	11.02

010		R38	16	450	4.4	9.70
		T38	16	450	4.2	9.26
		T45	16	450	4.4	9.70

011		T38	14	450	8.0	17.64
		T38	14	520	9.2	20.28
		T45	14	470	5.7	12.57
		T38	14	610	11.0	24.25
012		R38		467	4.1	9.04


013		T38		470	5.4	11.90


014		R32	12.7	380	2.7	5.95
		R38	12.7	380	3.2	7.05

015		R32		500	3.9	8.60
		T38		500	4.2	9.26

016		R32		351	3.6	7.94


017		R32		366	3.5	7.72
		R38		372	3.5	7.72
		T38		447	3.6	7.94
018		R32		500	4.1	9.04
		R38		440	4.4	9.70
		T38		500	4.1	9.04
		T38		440	3.7	8.16
019		T38		490	5.4	11.90
		T45		490	5.6	12.35

020		T45		670	7.5	16.53


021		T45		670	9.7	21.38


022		T38		490	5.3	11.68
		T45		490	5.6	12.35

023		T45		670	7.3	16.10
		T45		771	8.0	17.64

024		T45		670	9.0	19.84
		T51		670	9.2	20.28
		T45		771	9.7	21.38
		T51		771	10.2	22.49
025		T51		840	13.5	29.76


026		T38	14	455	3.5	7.72


027		T38	14	460	3.6	7.94
		T45	14	530	4.1	9.04

028		R55LI		500	10.5	23.15
		A55RE		500	10.5	23.15

029		R32	14	330	2.4	5.29
		R38	14	330	2.6	5.73
		T38	14	330	2.6	5.73
030		R32	14	380	3.3	7.28
		R38	14	380	3.8	8.38
		T38	14	380	3.8	8.38
		T45	14	380	3.9	8.60
		T38	14	446	4.0	8.82
		T45	14	446	4.2	9.26
031		R32	10	380	1.9	4.19


032		T38	14	530	5.5	12.13
		R38	14	447	4.8	10.58
		T45	14	550	5.8	12.79
033		R32	14	380	2.7	5.95
		T38	14	380	3.0	6.61

034		R32		340	3.5	7.72


035		R32		500	4.1	9.04
		T38		500	4.3	9.48
		T38		590	5.0	11.02
		T45		500	5.1	11.24
036		T45		590	6.3	13.89
		T38		575	5.5	12.13
		R38		485	4.3	9.48
		T38		485	4.3	9.48
037		R32		575	4.0	8.82
		T38		575	4.9	10.80

038		T45		780	10.5	23.15


039		T38		435	4.4	9.70
		T45		435	4.4	9.70
		T51		525	5.3	11.68
040		T38		525	5.8	12.79
		T45		525	5.8	12.79
		T51		525	6.2	13.67
041		R32		525	5.7	12.57
		T38		525	6.1	13.45
		T45		525	6.2	13.67
		T51		525	6.8	15.00
042		T45		565	6.9	15.21
		T51		565	7.1	15.65

043		T51		605	10.5	23.15


044		R32	14	380	3.3	7.28
		R38	14	380	3.8	8.38
		T38	14	380	3.8	8.38
		T45	14	380	3.9	8.60
		T38	14	446	4.0	8.82
		T45	16	446	4.2	9.26
045		R32	8	380	2.0	4.41
		R38	10	380	1.8	3.97

046		R32		500	4.1	9.04
		R38		500	4.3	9.48
		T38		500	4.3	9.48
047		T38		625	11.6	25.57
		T45		625	11.6	25.57

048		R38	16	635	8.0	17.64
		T38	16	620	8.0	17.64
		T38	16	635	8.0	17.64
		T45	16	630	8.0	17.64
		T45	16	635	8.3	18.30
		T51	16	635	8.8	19.40
		T45	16	640	8.3	18.30
049		R32		425	3.3	7.28
		R38		425	3.5	7.72

050		R32		515	4.0	8.82
		R38		515	4.3	9.48

051		T38	14	565	5.5	11.02


052		R38	14	447	5.1	11.24
		T38	14	537	5.5	12.13
		T45	14	550	6.2	13.67
053		T38	16	655	6.1	13.45
		T45	16	655	6.5	14.33

		T45		786	8.4	18.52


054		T38		620	5.7	12.57
		T45		620	5.7	12.57
		T38		690	6.4	14.11
		T45		690	7.1	15.65
055		T38		795	6.5	14.33
		T45		795	6.5	14.33

056		T38		710	9.0	19.84
		T45		720	9.2	20.28
		T45		700	9.1	20.06
057		T38		845	10.6	23.37
		T45		845	11.0	24.25
		T51		845	11.4	25.13
058		T45		845	10.8	23.81
		T51		845	11.0	24.25

059		T45		700	11.0	24.25
		T51		700	11.7	25.79
		T51		876	14.0	30.86
060		T38		814	9.1	20.06


061		T38		814	9.1	20.06


062		T45		592	8.4	18.52
		T45		790	9.9	21.83
		T51		790	10.8	23.81
063		T45		787	11.9	26.24
		T45		885	12.7	28.00
		T51		885	13.4	29.54
064		T51		790	12.7	28.00


065		T51		885	16.2	35.72


066		R32	14	355	4.0	8.82
		R38	14	355	4.0	8.82
		T38	14	380	4.3	9.48
		T38	14	446	5.0	11.02
		T45	14	446	5.0	11.02
067		T38	16	711	6.2	13.67
		T45	16	711	6.5	14.33

068		R38		725	7.9	17.42
		T38		725	7.9	17.42
		T45		725	8.2	18.08
069		T45		915	13.5	29.76
		T51		915	13.8	30.42

070		T38	16	446	4.5	9.92
		T45	16	446	4.8	10.58

071		T45		635	8.5	18.74
		T51		635	9.5	20.94

072		R32		400	2.6	5.73


073		R32		245	2.5	5.51


074		R32		550	4.1	9.04
		T38		550	4.6	10.14
		T38		480	4.1	9.04
		R38		460	3.9	8.60
		T45		550	4.5	9.92
075		T45		550	5.6	12.35


076		R32		450	3.8	8.38
		R38		450	4.0	8.82
		T38		450	4.0	8.82
077		R38		505	4.3	9.48
		T38		505	4.3	9.48

078		R38		500	5.4	11.90
		T38		500	5.4	11.90

079		R38		600	6.1	13.45
		T38		600	6.1	13.45
		T45		600	6.3	13.89
080		T38		525	5.7	12.57


081		T38		525	5.7	12.57


082		R32		600	6.3	13.89
		R32		525	5.5	12.13
		T38		600	6.6	14.55
		T38		525	5.8	12.79
		T45		600	6.9	15.21
083		T38		600	7.1	15.65
		T45		600	7.3	16.09

084		T45		600	8.4	18.52
		T51		600	8.4	18.52

085		T45	19	500	6.3	13.89
		T51	19	500	7.4	16.31

086		T45		670	10.3	22.70
		T51		590	9.4	20.72

087		T51		590	9.6	21.16
		T45		670	10.0	22.05
		T51		670	10.3	22.70
088		WD58		635	22.1	48.72
		WD68		635	27.5	60.63

089		ST58		710	13.7	30.20
		T60		710	13.7	30.20

090		T38		500	5.8	12.79
		R38		500	5.8	12.79
		T38		575	6.7	14.77
		T45		575	6.7	14.77
091		R38	14	447	5.1	11.24
		T38	14	537	5.5	12.13
		T45	14	550	6.2	10.33
092		R32	10	330	2.4	5.29
		R38	10	330	2.7	5.95

093		T38	12	480	5.0	11.02
		T38	12	570	5.9	13.00
		T38	12	550	5.8	12.79
		T45	12	570	6.1	13.45
094		R38		498	3.9	8.60
		T45		498	3.9	8.60

095		T45		512	6.4	14.11
